Temperature Data Logger Elitech RC-5+
USB temperature data logger Elitech RC-5+ features a plug-and-play USB port interface and allows for faster access to data collected in any cold chain management process. This could be used in pharmaceuticals, food, life science, cooler boxes, medical cabinets, fresh food cabinets, freezer or laboratories.
User Manual: RC-5+
- Multi-use temperature data logger with wide measuring range (-22℉~158℉) and high accuracy (±0.9℉).
- Upgraded version of RC-5 with new functions of Auto PDF report (encryptable via PC or Android phones); Restart logger by button pressing; double battery life up to 12 months; external temperature sensor available for purchase.
- Built-in USB port, no cable, no reader, even no software required to download data.
- Lower power consumption and battery replaceable; records up to 32,000 points.
- More features as IP 67 waterproof protection, 5 alarm ranges, ℃/℉ options, Excel/PDF report formats, free software for Windows & macOS and etc.
- Plug into a computer or Android phone (required OTG converter), read PDF report easily. Restart by long-pressing the left button.
- Sensor: Internal NTC thermal resistor, no external sensor supported
- Temperature measuring range: -30°C~+70°C/-22℉~158℉; Resolution: 0.1°C
- Accuracy: ±0.5 °C(-20°C~+40°C); others, ±1°C
- Temperature unit: °C or °F optional
- Communication interface: USB
- Power supply: CR2032 replaceable battery
- CE certificate
- Nist certificate
- IP67 waterproof grade
- Dimensions: 80mmx25mmx12mm(LxWxH)
- Shelf Life/Battery: 1 year; Log Interval: 10S~24H
- Temperature unit: °C or °F optional; Record capacity: 32000 points(MAX)
- Multiple-use: data can be removed and start a new round by our software
- Data could be queried, saved, printed and exported in Excel/PDF format.
- Package Included: 1 x Elitech RC-5+ Data Logger; 1 x CR2032 Battery; 1 x User Manual
Plus Compared to Elitech RC-5
RC-5+ is the upgraded version of RC-5 that comes with:
- Auto PDF Report: the new-added function allows data logger to generate PDF report automatically.
- Password Protection: optional password protection will keep your data’s security.
- Double the Battery Life: RC-5+ is with a battery life up to 12 months (15℃~23℃/45%RH~75%RH), which doubles RC-5' battery life.
Free Elitechlog Software for Windows & MAC OS
Please visit https://www.elitechustore.com/pages/download download and install the software as instructed in the user manual
- Log Clock: Not configurable. The time will sync with your computer after user clicks the Save Parameter button under the Parameter tab.
- S/N: Not configurable.
- Trip Description: Configurable. The info entered will be shown on the report, it can be used to differentiate one logger from another.
- Log interval: Configurable. Means how often our user wants the logger to perform a reading, it can be 10S, 1minute or 1day.
- Start Delay(H): Configurable. Means how long the logger will starts recording after you press the button on the logger.
- Press button: Configurable. Press on the play button for 4 seconds on the logger to start recording while the pause button is to stop recording.
- Temperature Unit: Configurable. Celsius or Fahrenheit.
- High/low limit: Configurable. The upper and lower alarming point you want to set.

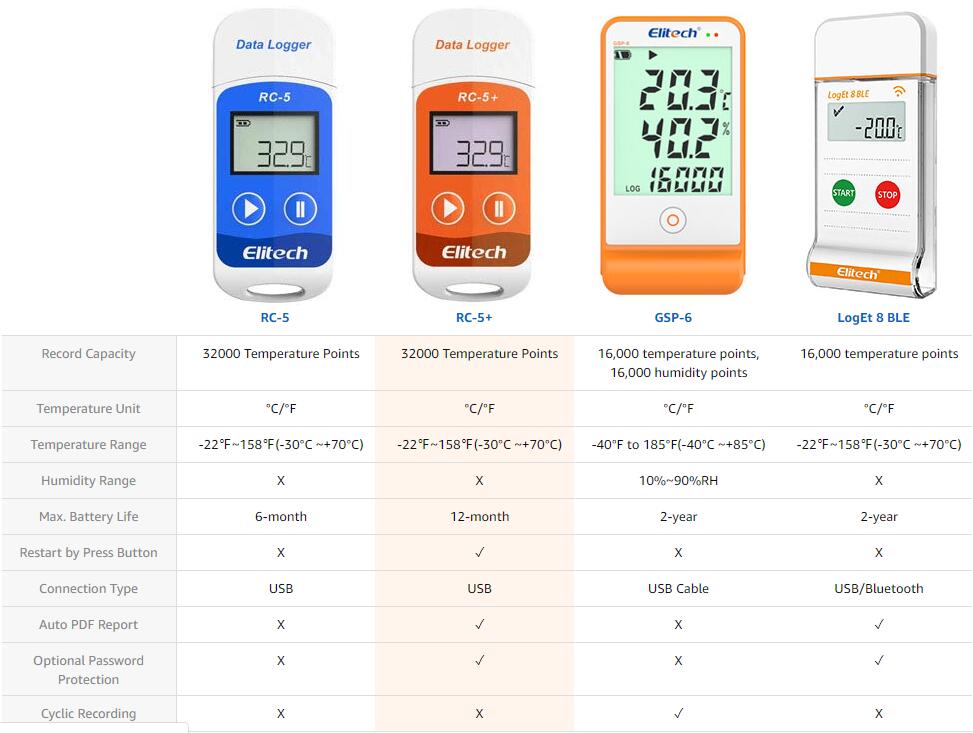

Product Comparison Chart:
